Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
| Place of Origin | Zhengzhou Henan |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | Embossed Aluminum |
| Minimum Order Quantity | 1 ton |
| Price | FOB, CIF, CFR, CNF, etc. |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | 1xxx/3xxx/5xxx/6xxx | Type | Plate/Coil |
|---|---|---|---|
| Temper | O-H112 | Thickness | 0.13-6.5mm |
| Width | 100mm-1600mm,Customer Requirement | Application | Construction,industry,Automobile,Building Wall |
| Surface Treatment | Embossed,Coated,Other | Standard | ISQ SGS ASTM ENAW |
| Highlight | Embossed Perforated Aluminum Sheet,Diamond Aluminum Plate,Checkered Patterned Aluminum Sheet |
||
Product Description

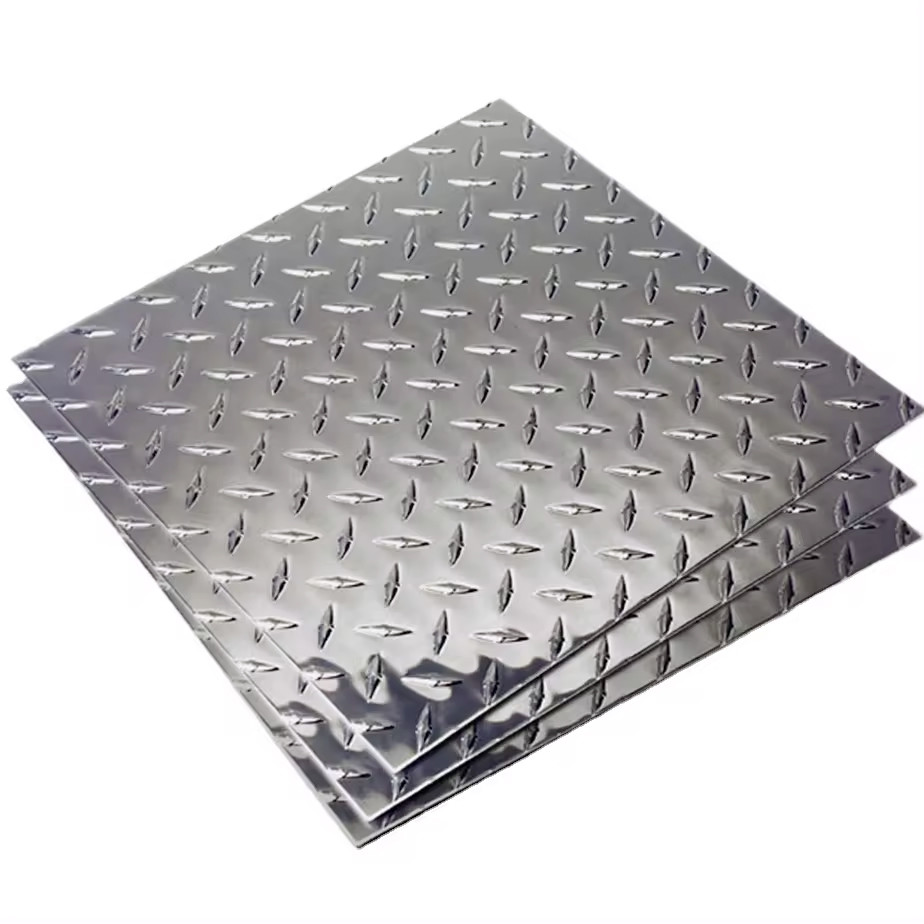

Diamond Aluminum Plate /Checkered Patterned Plate /Embossed Perforated Aluminum Sheet
Product Description:

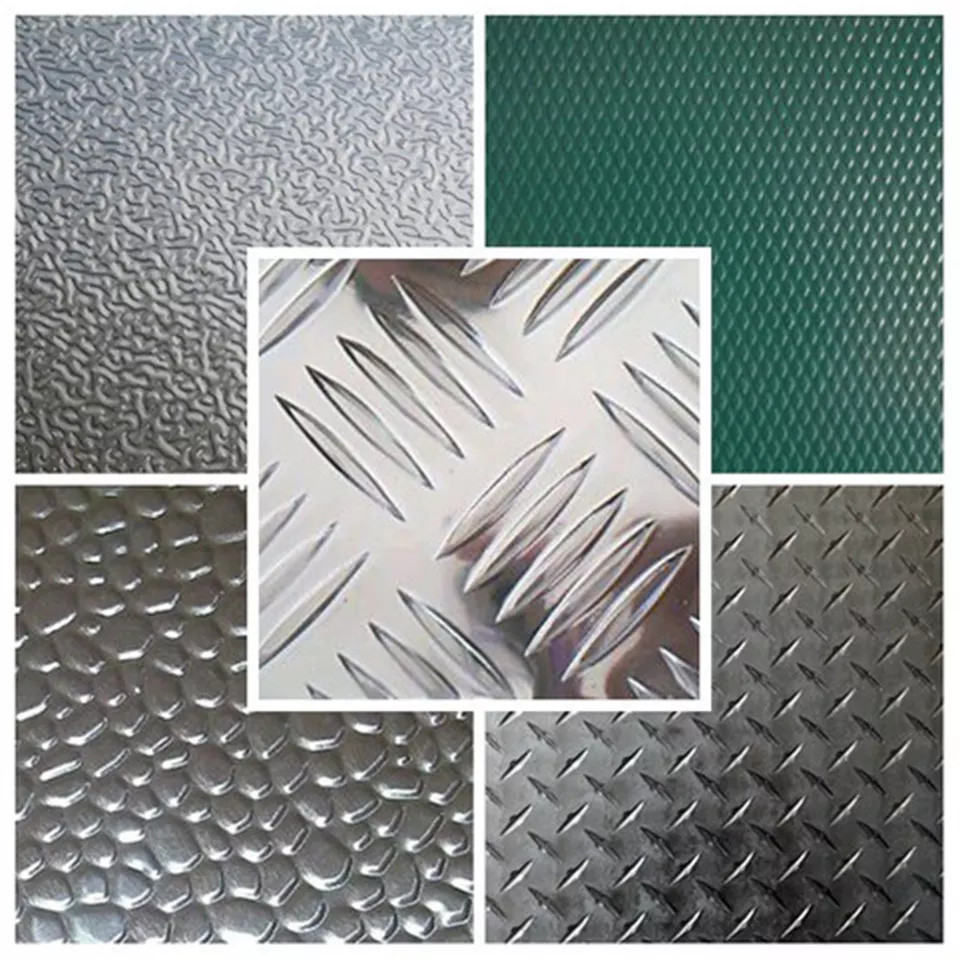

Embossed aluminum can be divided into five-rib aluminum, compass aluminum, orange peel aluminum, lentil-shaped pattern aluminum, spherical pattern aluminum, diamond-shaped aluminum and other pattern aluminum.
Embossed aluminum can be used for packaging, construction, cabinet shells, curtain walls, etc.
According to the different patterns of aluminum plates, it can be divided into:

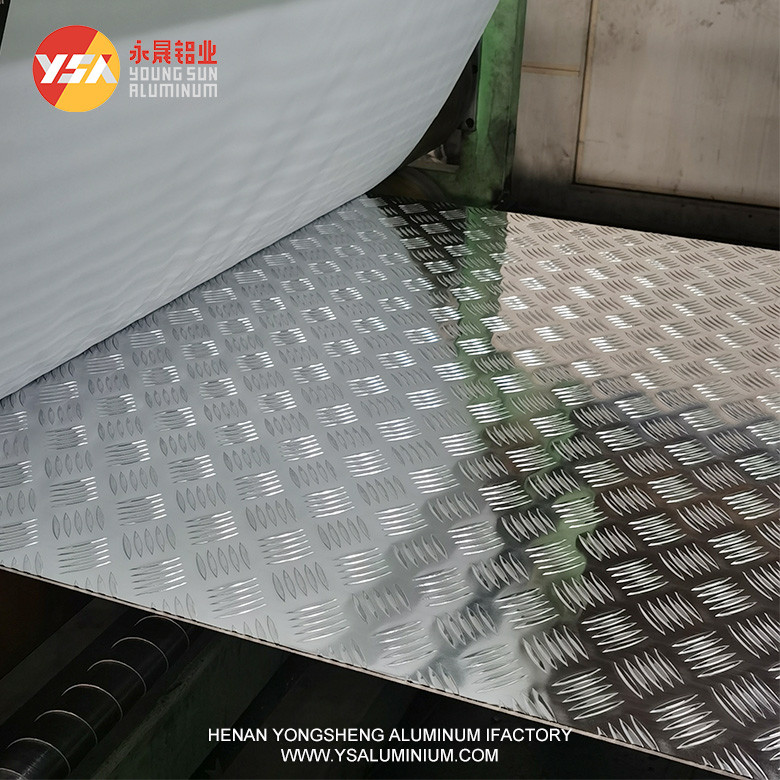

- Five-rib aluminum alloy pattern plate: Five-rib anti-slip aluminum plate is also called willow-leaf pattern plate or aluminum alloy pattern plate. It has good anti-slip ability and is widely used in building (floor) platform design and other aspects. Since the pattern on the surface of the aluminum plate is arranged in relative parallel according to five concave and convex patterns, and each pattern has an angle of 60-80 degrees with other patterns, this pattern has excellent anti-slip performance. This type of aluminum plate is usually used as anti-slip in China, with a good anti-slip effect and a cheaper price.
- Compass aluminum alloy pattern plate: anti-slip aluminum plate, which has the same effect as five ribs but is not often used.

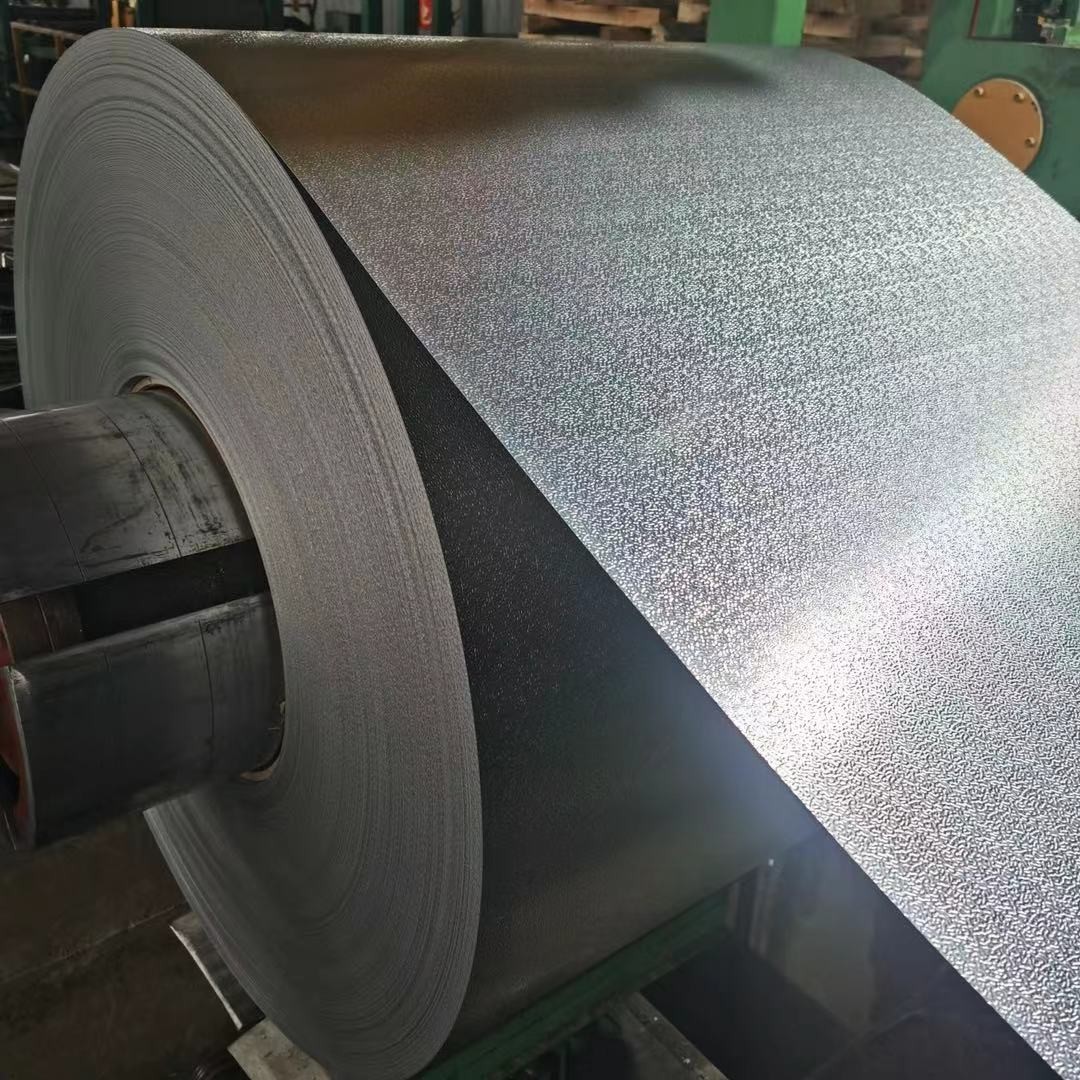

- Orange peel aluminum alloy patterned plates are divided into: classic orange peel patterned aluminum plates, variant orange peel patterned aluminum plates (also known as insect patterns). Its surface presents a pattern similar to that of orange peel, so it can also be called orange peel patterned aluminum plates. It is a series of patterned products commonly used in refrigerators, air conditioners and packaging.

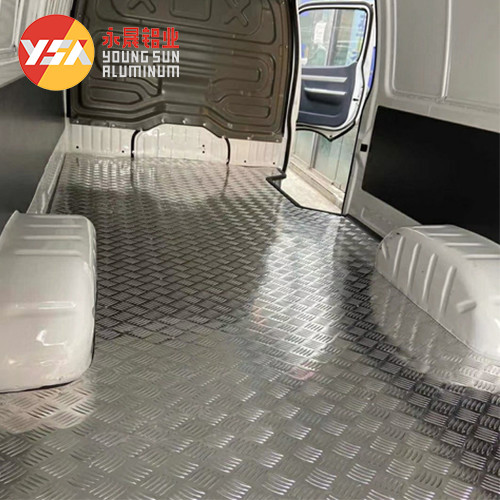

- Lentil-shaped patterned aluminum plates are a common style of anti-slip aluminum plates with good anti-slip effects. They are mainly used for carriages, platform anti-slip, cold storage floor anti-slip, workshop floor anti-slip, and elevator anti-slip.

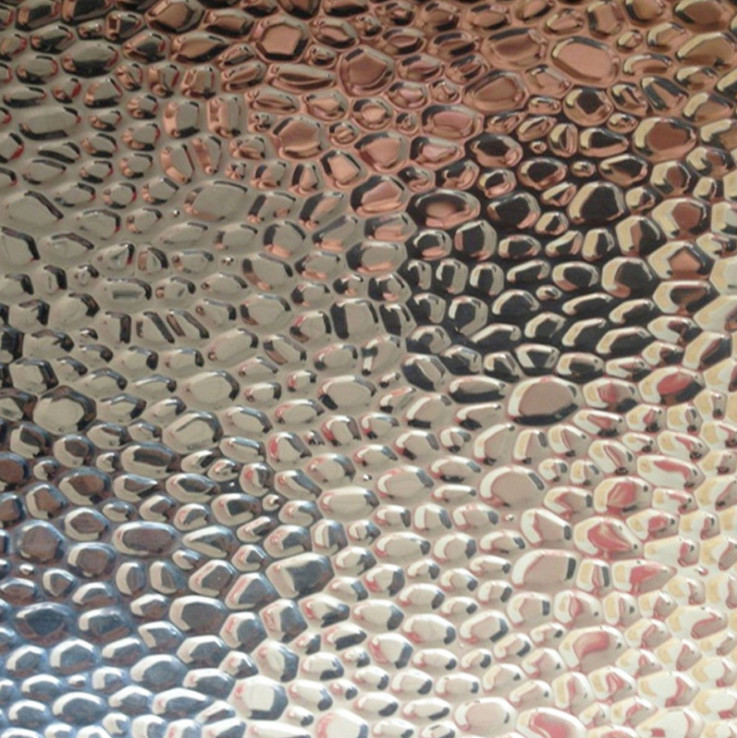

- Spherical patterned aluminum plates can also be called semi-spherical patterned aluminum plates. The surface presents small spherical patterns, like small pearls, so this aluminum plate can also be called pearl-shaped patterned aluminum plates. It is mainly used in outer packaging. The appearance is more beautiful. Due to the special pattern, the strength of this aluminum plate is much higher than other pattern series.
Product Specifications:
| 1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%) | |
| Alloy | 1050 1050A 1060 1070 1100 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/ H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤6.5mm; Width≤1600mm; |
| Application | Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc. |
| Feature | Lid Shigh conductivity, good corrosion resistant performance, high latent heat of melting, high-reflectance, well welding property, low strength, and not suitable for heat treatments. |
| 2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element) | |
| Alloy | 3003 3004 3005 3102 3105 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/ H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤6.5mm; Width≤1600mm; |
| Application | Decoration, heat-sink device, external walls, storage, sheets for construction, etc. |
| Feature | Good rust resistance, not suitable for heat treatments, good corrosion resistance performance, well welding property, good plasticity, low strength but suitable for cold working hardening |
| 3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element) | |
| Alloy | 5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06 |
| Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤6.5mm; Width≤1600mm; |
| Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile Body Sheets, Automobile Inside Board, The Protective Cover On Engine. |
| Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength, good corrosion-resistant performance, well welding property, well-fleet strength, and suitable for anodic oxidation. |
| 4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements ) | |
| Alloy | 6061 6063 6082 |
| Temper | O T, etc. |
| Specification | Thickness≤6.5mm; Width≤1600mm; |
| Application | Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components, Transport Ship, Semiconductor Equipments, etc |
| Feature | Good corrosion-resistant performance, well-welded property, good oxidability, easy to spray-finish, well oxidation coloring, good machinability. |
| Material | 1060,1200,1100,2024,3003,3004,6061,7075,8011 |
Product Show:
